| Connector Type | SC APC to SC APC | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10D/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
SC/APC to SC/APC
Price range: 270 ₨ through 640 ₨

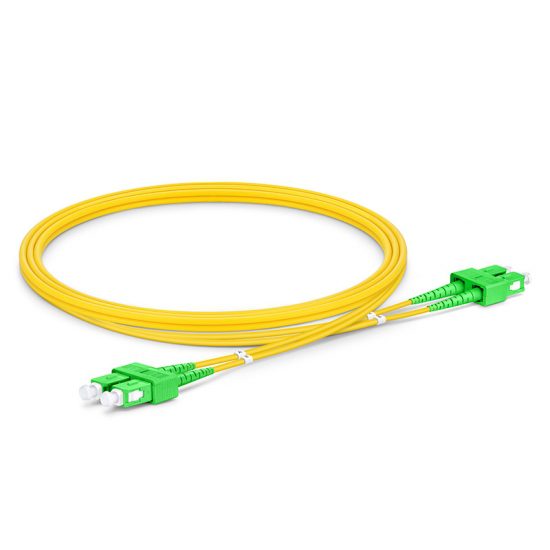

1m (3ft) | SC APC to SC APC Duplex | Single Mode PVC | 2.0mm | Fiber Optic Patch Cable
- G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
- Precision Zirconia Ferrules Ensure Consistent Low Loss
- Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use
- Designed for High Bandwidth and Transmission Rate over Long Distances
- Compliant to IEC-61754 and TIA-604 (FOCIS)
Size: 1M 3M 10M 20M
